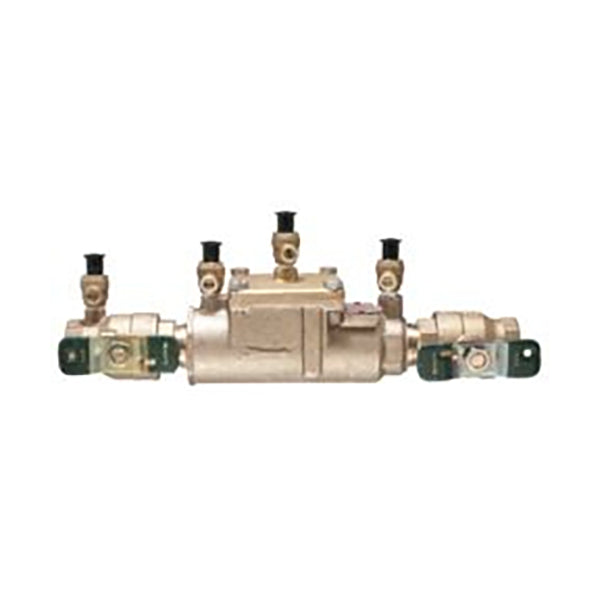

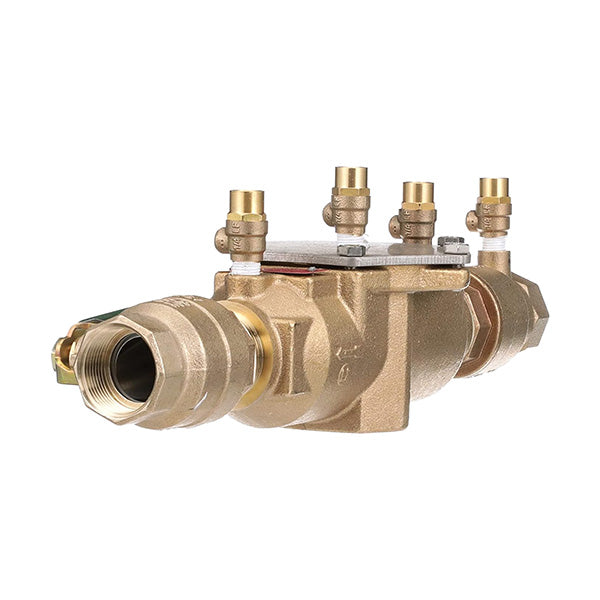

1-1/2 in Double Check Valve Backflow Preventer Assembly FIP
WA112007QTLF WATTS 007QT 1-1/2 BCKFL PRV DCV
PDIPN:
1788
Key Features
Regular price
$1,937.00
Sale price
$1,937.00
Regular price
Overview
Overview
Designed for installation at cross-connections, this double check valve assembly prevents the backflow of polluted water into the potable water supply. The unit features a lead-free cast copper silicon alloy body and utilizes a specialized 3-part epoxy coating system to reduce microbial-induced corrosion and protect the metal substrate. Rated for pressures up to 175 psi and temperatures reaching 180 degrees, this assembly provides a secure solution for maintaining water system integrity. It includes a modular design that retains the spring load to simplify maintenance and assembly procedures for professional plumbing applications.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 16-3/4 in
- Inlet Diameter (in) 1-1/2 in
- Thread Size (in) 1-1/2 in
- Water Connection Size (in) 1-1/2 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 180 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type FIP
Material
- Material Brass
