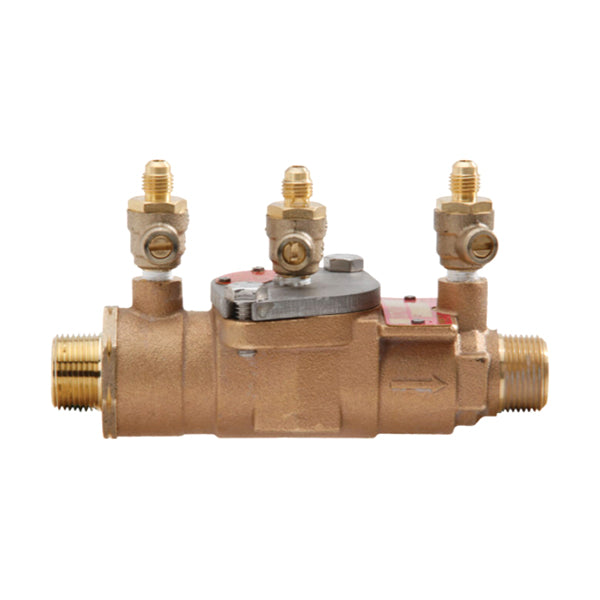

2-1/2 in Double Check Valve Assembly NPT
2-1/2 in Double Check Valve Assembly NPT
PDIPN:
122418
Key Features
Regular price
$7,331.00
Sale price
$7,331.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This double check valve assembly provides protection for potable water systems by preventing the backflow of contaminated water in non-health hazard applications. The unit features an inline pattern with 2independent positive seating check modules to maintain system integrity. Constructed with a cast iron body, the assembly utilizes a multi-part epoxy coating system to limit microbial induced corrosion and protect the metal substrate. It is rated for a maximum pressure of 175 psi and operates at temperatures up to 110 degrees. The assembly includes top-mounted test cocks to facilitate routine maintenance and testing procedures, and it utilizes NPT connections for integration into standard plumbing configurations.
Specifications
Specifications
Dimensions and Measurements
- Inlet Diameter (in) 2-1/2 in
- Thread Size (in) 2-1/2 in
- Water Connection Size (in) 2-1/2 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 110 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type NPT
Material
- Material Cast Iron
