WA34LF7RU22 WATTS R7U22 3/4 FIP DL CK VL 25
WA34LF7RU22 WATTS R7U22 3/4 FIP DL CK VL 25
PDIPN:
10318
Key Features
Regular price
$199.00
Sale price
$199.00
Regular price
Shipping calculated at checkout.
Overview
Overview

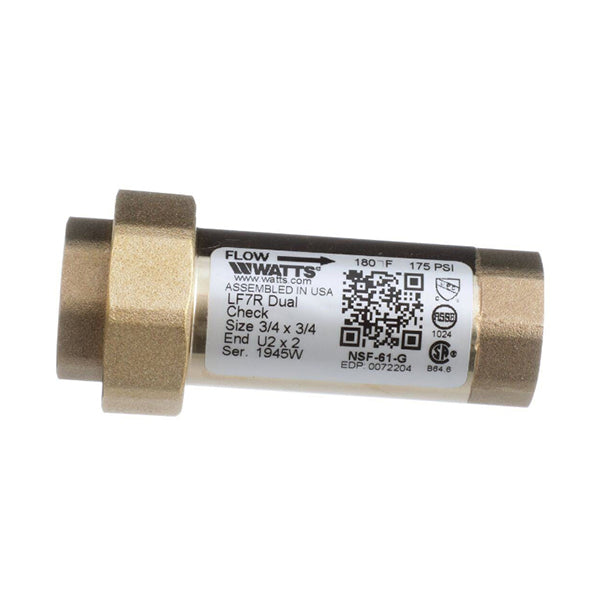

Engineered for residential containment, this dual check valve assembly prevents the reverse flow of potentially polluted water from entering the potable drinking water supply. The unit is rated for continuous pressure applications and functions effectively when installed in either vertical or horizontal orientations immediately downstream of the water meter. Constructed with a lead-free brass body and stainless steel springs, the device supports a maximum pressure rating of 175 psi and operates safely in water temperatures up to 180 degrees. This assembly utilizes NPT connections to ensure a secure fit for service entrance or individual outlet plumbing configurations, providing essential protection for residential water systems.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 3/4 in
- Inlet Diameter (in) 3/4 in
- Water Connection Size (in) 3/4 in
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type NPT
- Manufacturer Warranty Refer manufacturer website for warranty
Material
- Material Copper Silicon Alloy
Performance Capacity
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 180 deg
Compatibility
- Compatible Valve Type Check Valve
