WATS 0163765 40XL-7-1502101 1IN 40XL-7-150L R/VLV
WATS 0163765 40XL-7-1502101 1IN 40XL-7-150L R/VLV
PDIPN:
117516
Key Features
Regular price
$651.62
Sale price
$651.62
Regular price
Overview
Overview

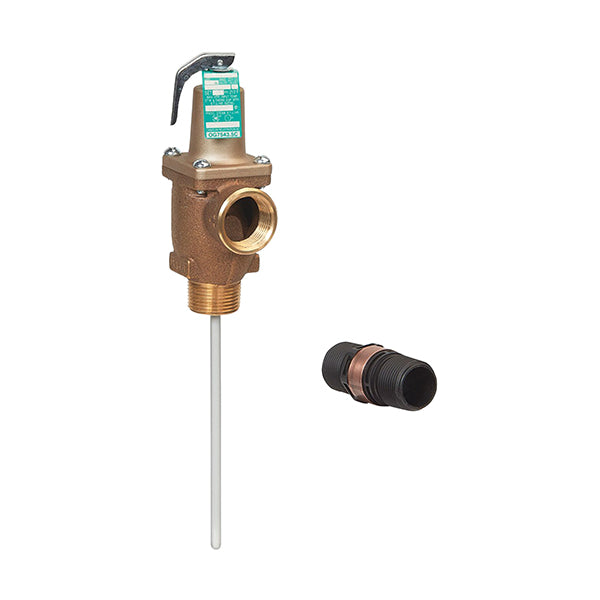

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This Automatic Reseating Temperature and Pressure Relief Valve has a 1 in NPTF male inlet, 1 in NPTF female outlet, 7 in coated extension thermostat, pressure relief setpoint of 150 PSI, and temperature relief setpoint of 210 degrees F. The valve can be installed in hot water outlet within the allowable distance from the top of the tank for commercial applications to provide protection for hot water supply tanks and hot water heaters. It features a bronze body, tamper resistant bonnet screws, and test lever.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 1 in
- Water Connection Size (in) 1 in
- BTU Rating (BTU/hr) 500000 BTU/hr
- Pressure Rating (PSI) 150 PSI
- Pressure Set Point (PSI) 150 PSI
- Temperature Rating (deg) 210 deg F
Number Of
- Quantity (Count) 1
Material
- Material Bronze
