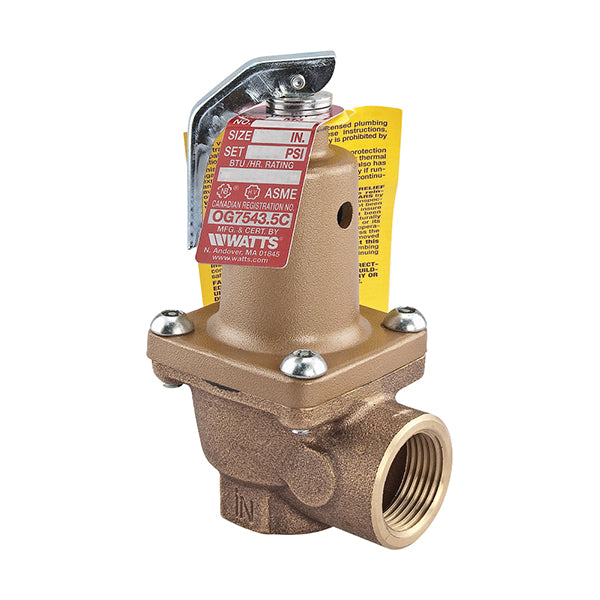

WATS 0274598 174A-0753/4 3/4 174A-75 RLF VLV
WATS 0274598 174A-0753/4 3/4 174A-75 RLF VLV
PDIPN:
94960
Key Features
Regular price
$270.77
Sale price
$270.77
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Pressure Relief Valves are used in hot water heating and domestic supply boiler applications to protect against excessive pressures on all types of hot water heating supply boiler equipment. It consists of a bronze body construction with NPT threaded female inlet and NPT threaded female outlet (drain) connections, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
- BTU Rating (BTU/hr) 1320000 BTU/hr
- Pressure Rating (PSI) 56 PSI
- Pressure Set Point (PSI) 75 PSI
- Temperature Rating (deg) 250 deg F
Number Of
- Quantity (Count) 1
Material
- Material Bronze
