WATS 0276980 174A-12511/2 1-1/2 174A-125 RLF VLV
WATS 0276980 174A-12511/2 1-1/2 174A-125 RLF VLV
PDIPN:
111920
Key Features
Regular price
$1,917.00
Sale price
$1,917.00
Regular price
Overview
Overview

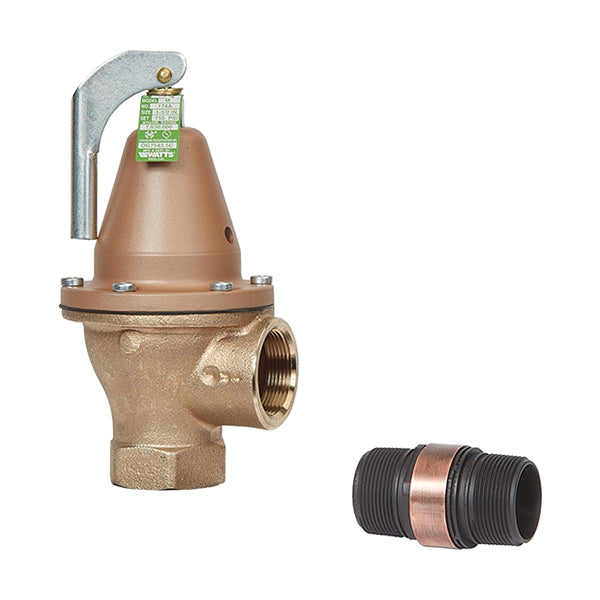

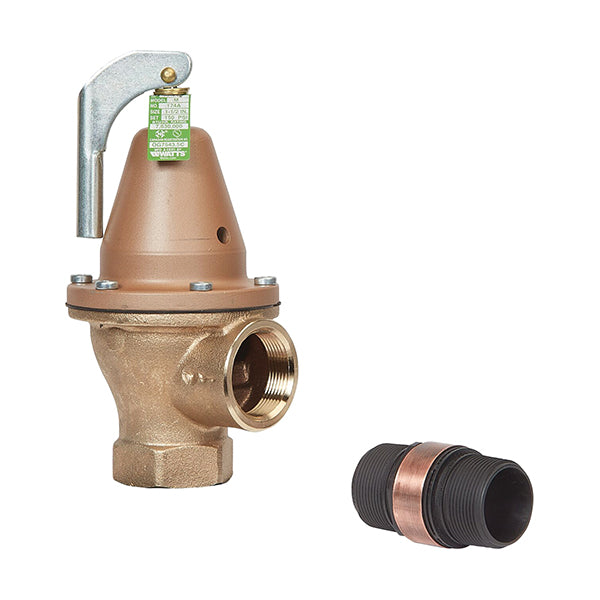

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This Pressure Relief Valve has a 1-1/2 in NPTF female inlet and outlet and a 125 PSI pressure relief setpoint. The valve can be used for hot water space heating boiler applications to protect against excessive pressure. It features a bronze body, non-metallic disc-to-metal seating, and test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 1-1/2 in
- Water Connection Size (in) 1-1/2 in
- BTU Rating (BTU/hr) 6460000 BTU/hr
- Pressure Rating (PSI) 125 PSI
- Pressure Set Point (PSI) 125 PSI
- Temperature Rating (deg) 250 deg F
Number Of
- Quantity (Count) 1
Material
- Material Bronze
