WATS 0556050 LF4L-1503/4 LF RELIEF VLV
WATS 0556050 LF4L-1503/4 LF RELIEF VLV
PDIPN:
82692
Key Features
Regular price
$312.50
Sale price
$312.50
Regular price
Overview
Overview

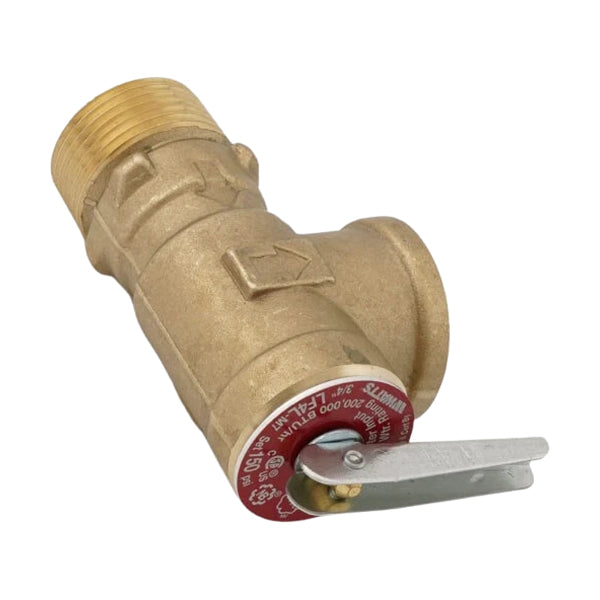

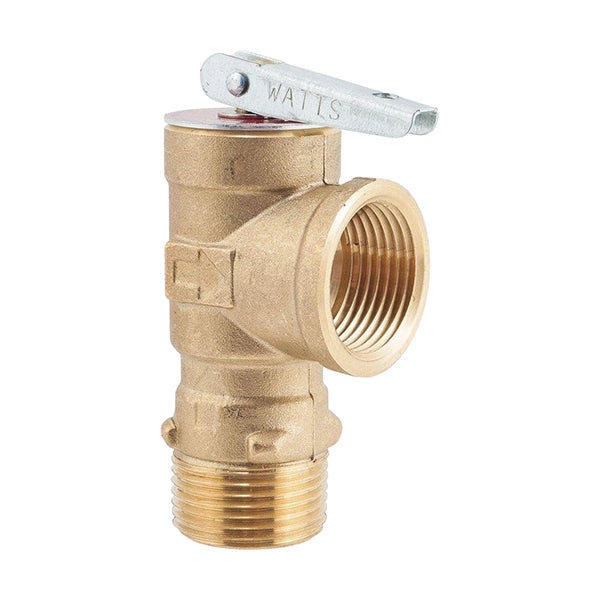

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This 3/4 in Pressure Relief Valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead-free body construction with 3/4 in NPT threaded male inlet and 1/2 in NPT threaded female (drain) outlet, test lever and stainless steel spring. It is ANSI Z21.22 approved, ASME-rated and design certified and listed by CSA. The pressure relief is set at 150 PSI.
Specifications
Specifications
Dimensions and Measurements
- Thread Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
- BTU Rating (BTU/hr) 500000 BTU/hr
- Flow Rate (gpm) 7 gpm
- Pressure Rating (PSI) 150 PSI
- Temperature Rating (deg) 9999 deg F
Number Of
- Quantity (Count) 1
Material
- Material Copper Silicon Alloy
