FV-4M1 Series 1/2 in Automatic Vent Valve
FV-4M1 Series 1/2 in Automatic Vent Valve
PDIPN:
64085
Key Features
Regular price
$68.00
Sale price
$68.00
Regular price
Overview
Overview

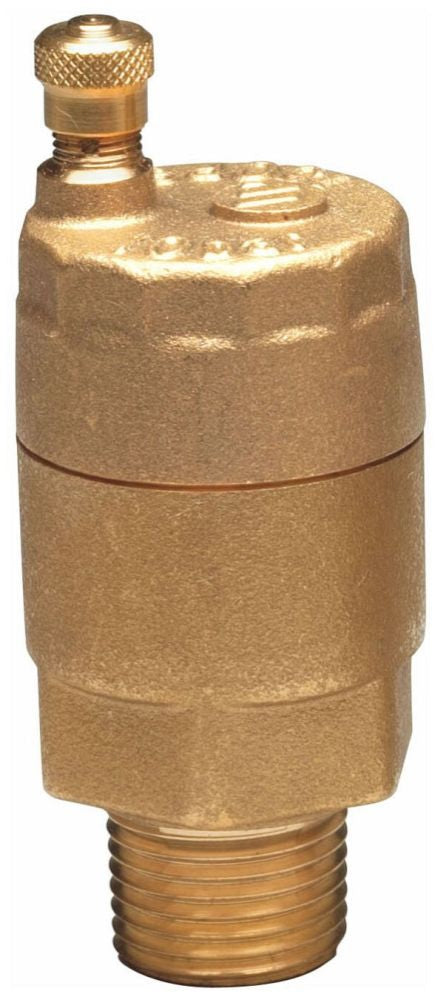

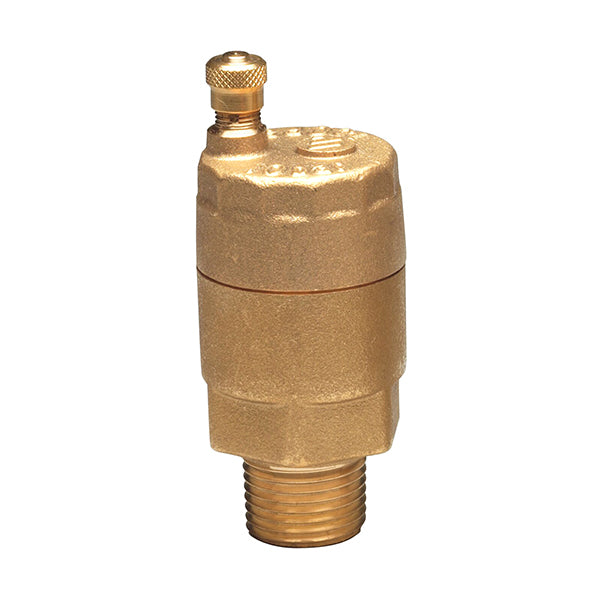

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This 1/2 in automatic vent valve is used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with female NPT connection, brass cover, air vent with silicone rubber seal, polyethylene float with valve plug, and automatic vent. It has a high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. It can also be installed to permit the separation and dispersal of air while fluid is circulating in the system. It can be disassembled for inspection and cleaning. The maximum pressure is 150 psi (10 bar).
Specifications
Specifications
Dimensions and Measurements
- Overall Depth (in) 1-1/4 in
- Overall Height (in) 3-5/16 in
- Overall Width (in) 1-1/4 in
- Thread Size (in) 1/2 in
Characteristics and Features
- Installation Type Screw-On
- Manufacturer Warranty Lifetime Limited Warranty
Finish
- Color/Finish Whites
Number Of
- Quantity (Count) 1
Material
- Material Brass
Yes/No Features
- Fan Only (Yes/No) No
- Heater Components Included (Yes/No) No
- Humidity Sensing (Yes/No) No
- Lighting Included (Yes/No) No
Performance Capacity
- Temperature Rating (deg) 33 to 240 deg F
Style
- Design Style Industrial
