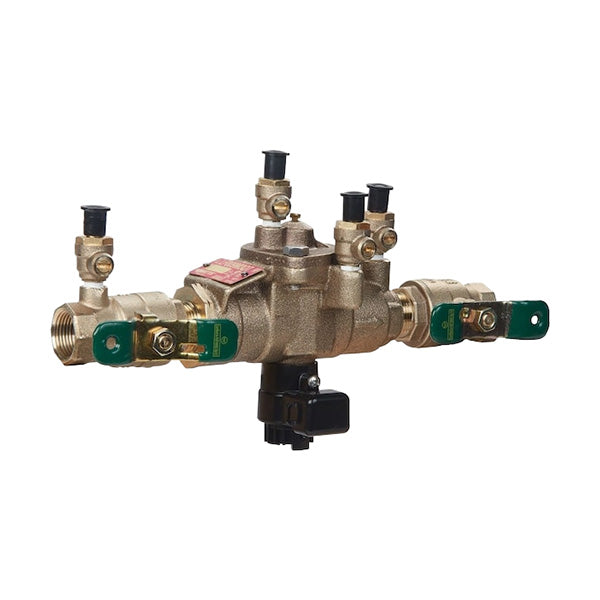

3/4 in Reduced Pressure Zone Backflow Preventer Check Valve Assembly, NPT
WATTS 88004111 LF009M3-QT-FS3/4 3/4 LF BFP ASSEMBLY
PDIPN:
210140
Key Features
Regular price
$1,449.00
Sale price
$1,449.00
Regular price
Overview
Overview
Designed to protect potable water supplies from cross-contamination, this reduced pressure zone assembly meets national plumbing codes and water authority requirements for health hazard prevention. The unit features a modular check valve assembly with a top-entry design, allowing for immediate access to internal components during routine service. Engineered for use with ball valve shutoffs, this assembly supports a maximum pressure rating of 175 psi and operates at temperatures up to 180 degrees. The NPT connection type ensures a secure, threaded installation at the service line entrance or within piping systems to maintain water system integrity.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 10-3/4 in
- Inlet Diameter (in) 3/4 in
- Thread Size (in) 3/4 in
- Water Connection Size (in) 3/4 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 180 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type NPT
Material
- Material Copper
