WATS F156731 40XL-5150/210FS3/4 3/4 BRZ VLV
WATS F156731 40XL-5150/210FS3/4 3/4 BRZ VLV
PDIPN:
317058
Key Features
Regular price
$275.32
Sale price
$275.32
Regular price
Overview
Overview

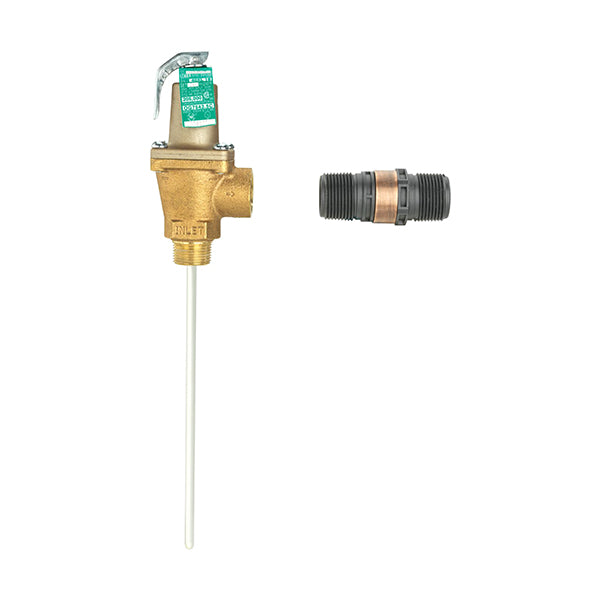

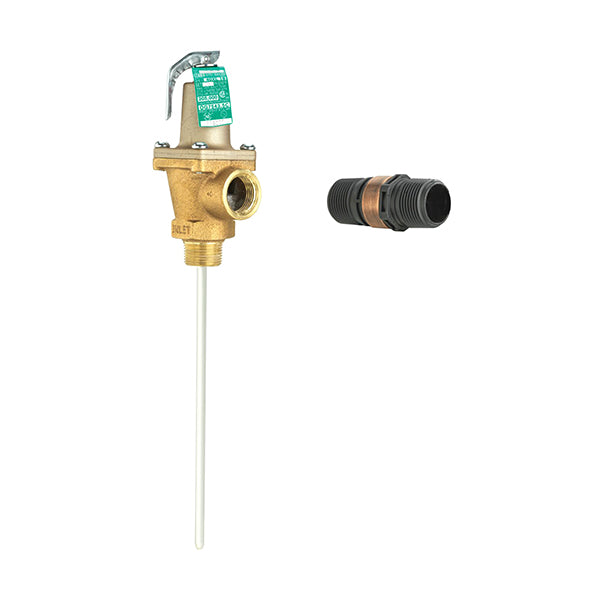

SPECIAL ORDER ITEM. Review Returns Policy before purchase. This Automatic Reseating Temperature and Pressure Relief Valve has a 3/4 in NPTF male inlet, 3/4 in NPTF female outlet, 5 in coated extension thermostat, pressure relief setpoint of 150 PSI, and temperature relief setpoint of 210 degrees F. The valve can be installed in hot water outlet within the allowable distance from the top of the tank for commercial applications to provide protection for hot water supply tanks and hot water heaters. It features a bronze body, tamper resistant bonnet screws, and test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
Specifications
Specifications
Dimensions and Measurements
- Water Connection Size (in) 3/4 in
- BTU Rating (BTU/hr) 205000 BTU/hr
- Pressure Rating (PSI) 112 PSI
- Pressure Set Point (PSI) 150 PSI
Number Of
- Quantity (Count) 1
Material
- Material Bronze
