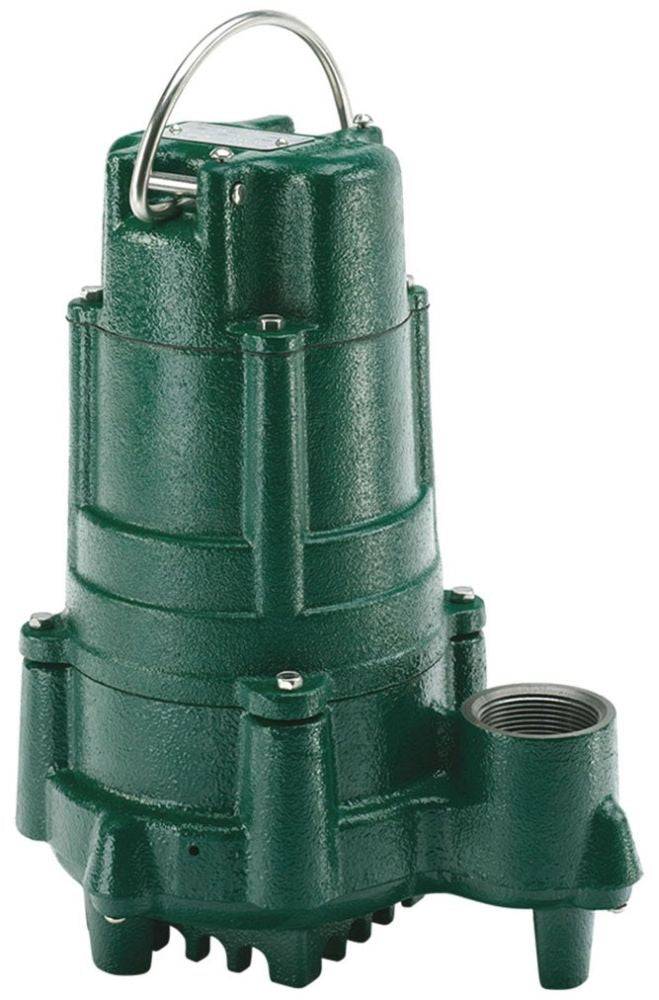

Flow Mate Series 1 HP 230V 1-1/2 in Manual Sump Pump, Green
Flow Mate Series 1 HP 230V 1-1/2 in Manual Sump Pump, Green
PDIPN:
143395
Key Features
Regular price
$731.25
Sale price
$731.25
Regular price
Shipping calculated at checkout.
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. The nonautomatic effluent pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. This professional-grade pump is known for its dependability and requires a piggyback float switch or control panel for operation. Either option allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank. The switch case, motor housing and pump housing are each constructed of cast iron. The engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The identification tag, handle and hardware are made of stainless steel.
Specifications
Specifications
Dimensions and Measurements
- Cord Length (ft) 20 ft
- Discharge Size (in) 1-1/2 in
Characteristics and Features
- NEMA Enclosure Type NEMA 6
- Pump Switch Type Manual
- Manufacturer Warranty 1 Year
Material
- Material Cast Iron, Stainless Steel, Engineered Plastic
Performance Capacity
- Speed Rating (rpm) 3450 rpm
- Flow Rate (gpm) 86 gpm
- Horsepower (HP) 1 HP
- Temperature Rating (deg) 130 deg F
Electrical Information
- Frequency Rating (Hz) 60 Hz
- Amperage (A) 0.25
- Voltage (V) 230 V
Operation Detail
- Power Rating (W) 373 W
