2 in Tri-Check Valve, White
ZOELLER 30-0101 VALVE,UNICHK-UNION BALL VALVE/2IN /PVC/SOC/SCH40
PDIPN:
16697
Key Features
Regular price
$54.75
Sale price
$54.75
Regular price
Overview
Overview

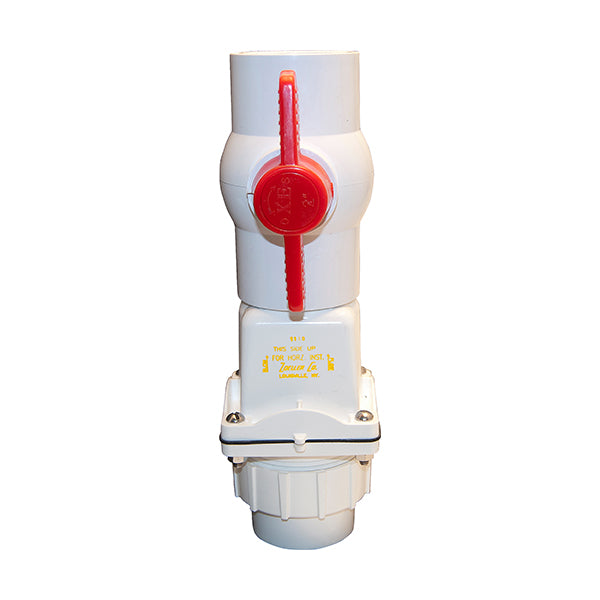

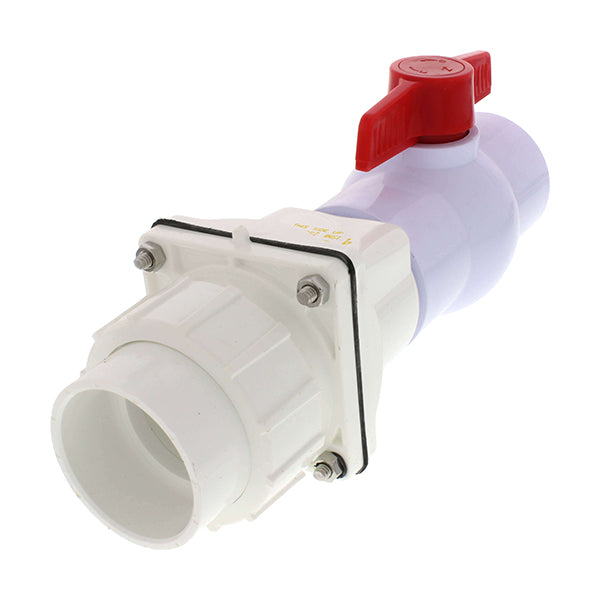

The 2 in Tri-Check Valve is designed for basement sump, septic system, and effluent applications to prevent backflow. This valve can be installed in the vertical or horizontal orientation in the discharge line. Our 2 in Tri-Check includes a check valve, union, and ball valve in one fitting. This combination makes it easy to install, eliminating the need to glue all three components together in the field. All parts of the Tri-Check are designed to pass 2 in spherical solids. So, you don’t have to worry about the valve becoming a restriction in the discharge line when paired with one of our sewage pumps. The solvent-weld ends make the Tri-Check easy to install.
Specifications
Specifications
Dimensions and Measurements
- Overall Width (in) 13 in
- Overall Height (in) 11-1/2 in
- Overall Depth (in) 9-1/2 in
- Thread Size (in) 2 in
- Water Connection Size (in) 2 in
- Pressure Rating (PSI) 25 PSI
- Temperature Rating (deg) 130 deg F
Characteristics and Features
- Plumbing Connection Type Slip-On
Number Of
- Quantity (Count) 1
Material
- Material PVC
