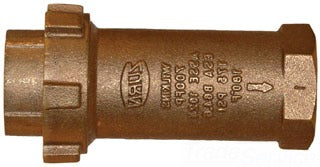

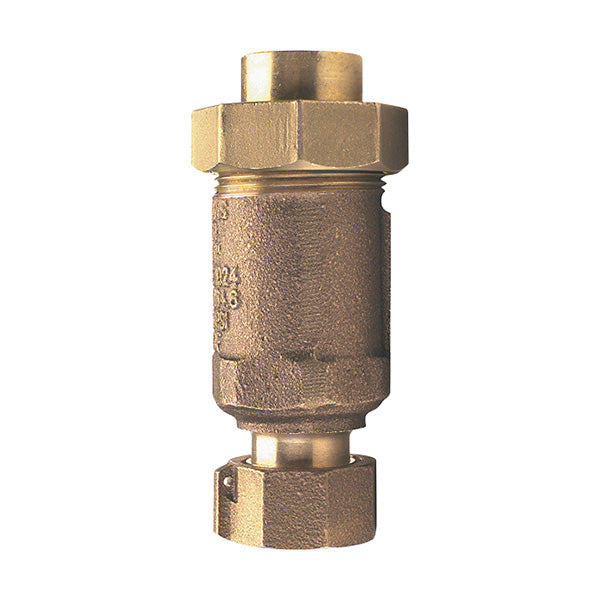

1-1/4 in Dual Check Valve Water Backflow Preventer, Flange
1-1/4 in Dual Check Valve Water Backflow Preventer, Flange
PDIPN:
200857
Key Features
Regular price
$124.00
Sale price
$124.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. Engineered for installation on potable water lines, this dual check valve assembly provides essential protection against both backsiphonage and backpressure of polluted water into the clean water supply. The unit is rated for a maximum pressure of 175 psi and operates safely in temperatures up to 180 degrees Fahrenheit. Designed for use in systems where a potential health hazard does not exist, this assembly features a flange connection type for secure integration into plumbing infrastructure. It is certified to meet ASSE 1024 standards and complies with NSF/ANSI/CAN 61 requirements for water system components.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 4-3/4 in
- Inlet Diameter (in) 1-1/4 in
- Thread Size (in) 1-1/4 x 1 in
- Water Connection Size (in) 1-1/4 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 180 deg
Characteristics and Features
- Backflow Preventers and Parts Type Check Valve Assembly
- Plumbing Connection Type Flanged
Material
- Material Gold
