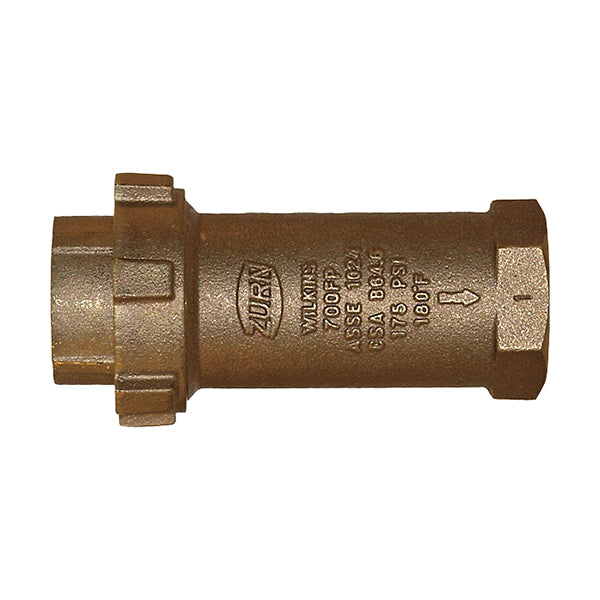

700XLFP Series High Capacity Dual Check Valve, Brass
700XLFP Series High Capacity Dual Check Valve, Brass
PDIPN:
85795
Key Features
Regular price
$408.00
Sale price
$408.00
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. The High Capacity Dual Check Valve used in low health hazard, non-potable applications for protection against both backsiphonage and backpressure of polluted water. It is commonly used in residential fire sprinkler applications when deemed acceptable by the jurisdiction of the local authorities. It may be installed vertically or horizontally, and includes multiple inlet and outlet connection configurations for versatile installation. Features include corrosion-resistant stainless steel springs and cast bronze main valve body, a maximum pressure of 175 PSI and a maximum temperature of 180 deg F.
Specifications
Specifications
Dimensions and Measurements
- Overall Length (in) 6-5/16 in
- Overall Width (in) 3-3/8 in
- Overall Height (in) 6-5/16 in
- Overall Depth (in) 6-5/16 in
- Thread Size (in) 1-1/4 in
- Water Connection Size (in) 1-1/4 in
- Pressure Rating (PSI) 175 PSI
- Temperature Rating (deg) 180 deg F
Characteristics and Features
- Plumbing Connection Type NPT
Number Of
- Quantity (Count) 1
Material
- Material Brass
