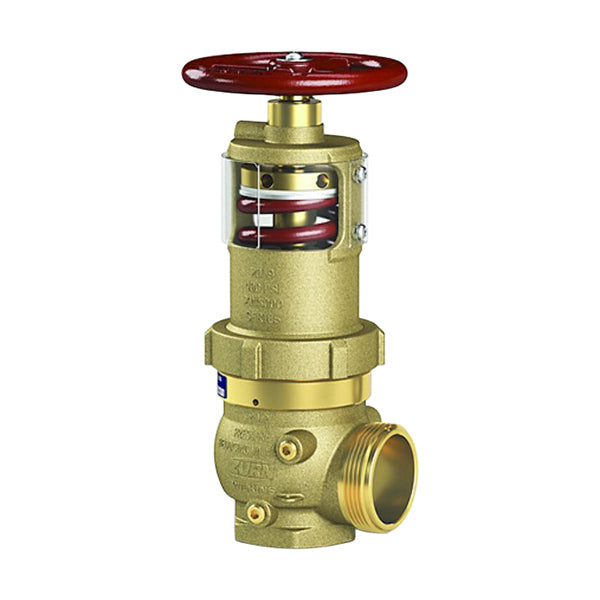

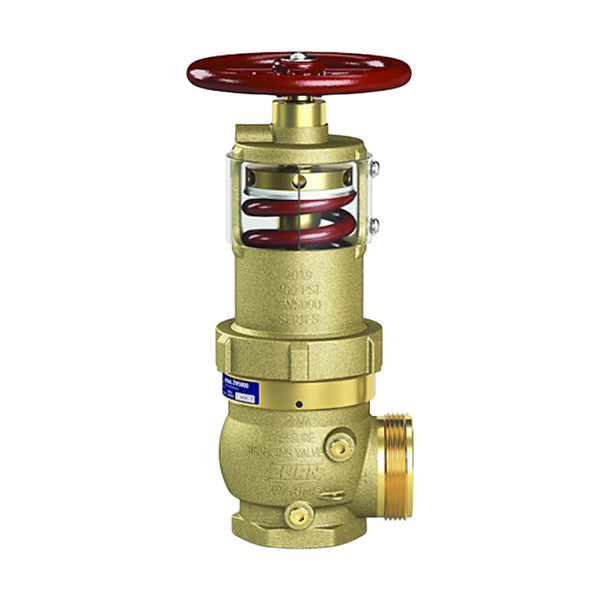

Pressure-Tru 2-1/2 in Field Adjustable Pressure Reducing Hose Valve
Pressure-Tru 2-1/2 in Field Adjustable Pressure Reducing Hose Valve
PDIPN:
201703
Key Features
Regular price
$4,491.58
Sale price
$4,491.58
Regular price
Overview
Overview
SPECIAL ORDER ITEM. Review Returns Policy before purchase. This Pressure Reducing Hose Valve is listed as a standpipe valve for individual hose stations in Class I and Class III systems. It regulates pressure under both flow and no-flow conditions to ensure reliable system performance. The low-torque design allows easy field adjustment, requiring only 9 ft-lb of torque. Its compact profile fits into tight spaces, while the larger handwheel ensures smooth and trouble-free operation.
Specifications
Specifications
Dimensions and Measurements
- Fitting Size (in) 2-1/2 in
- Inlet Diameter (in) 2-1/2 in
- Outlet Diameter (in) 2-1/2 in
- Valve Size (in) 2-1/2 in
- Pressure Rating (PSI) 400 PSI
- Temperature Rating (deg) 140 deg
Characteristics and Features
- Plumbing Connection Type NPT
Number Of
- Quantity (Count) 1
Material
- Material Bronze
